4.5.0 - Layout Editor Does Not Show Media

Get Help CMS Features and Functionality
1

To be completed by the original poster:

CMS Version

Docker Version 4.5.0

Player Type

Windows

Player Version

xibo-client-v4-R407.2-win32-x86

Issue

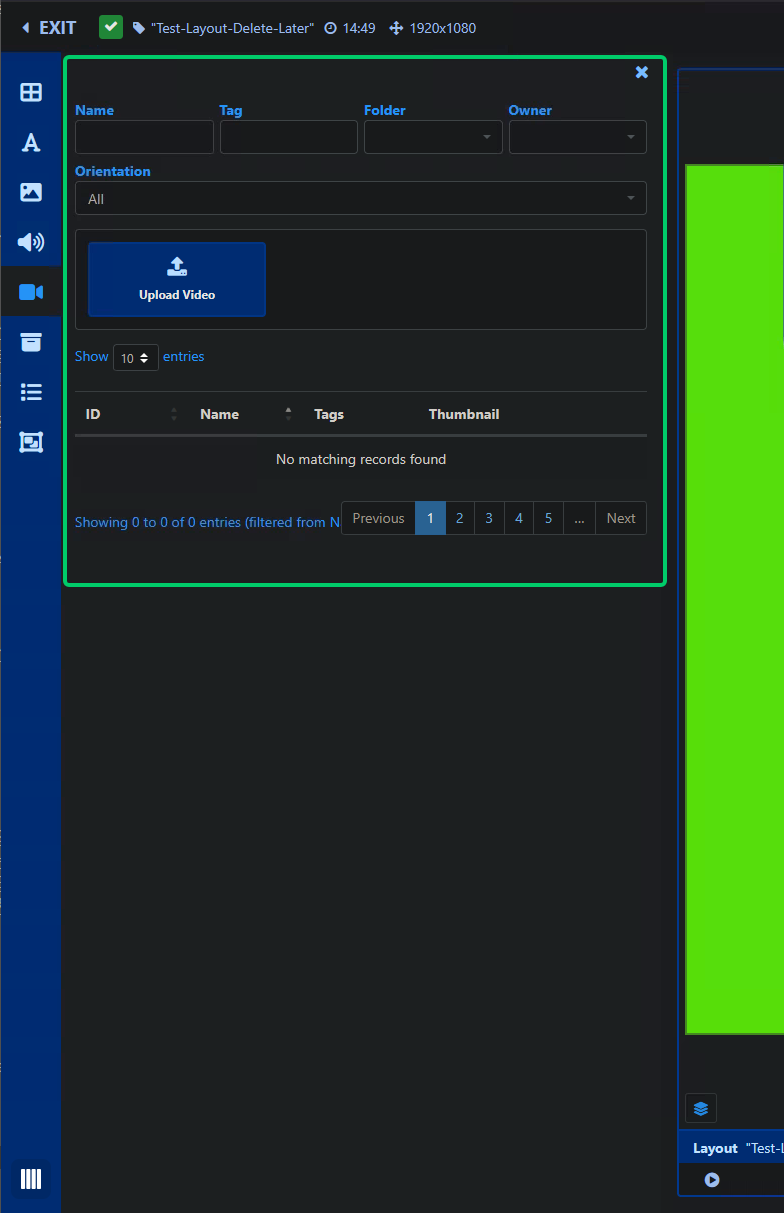

After upgrading to version 4.5.0 from version 4.4.4 (docker) our media no longer shows up in the layout editor which makes editing and creating layouts difficult. It was working properly in version 4.4.4. I tested downgrading to version 4.4.4 in a our test environment, but it fails and is stuck at the maintenance/upgrade screen “The CMS is temporarily off-line as an upgrade is in progress. Please check with your system administrator for updates or refresh your page in a few minutes.”

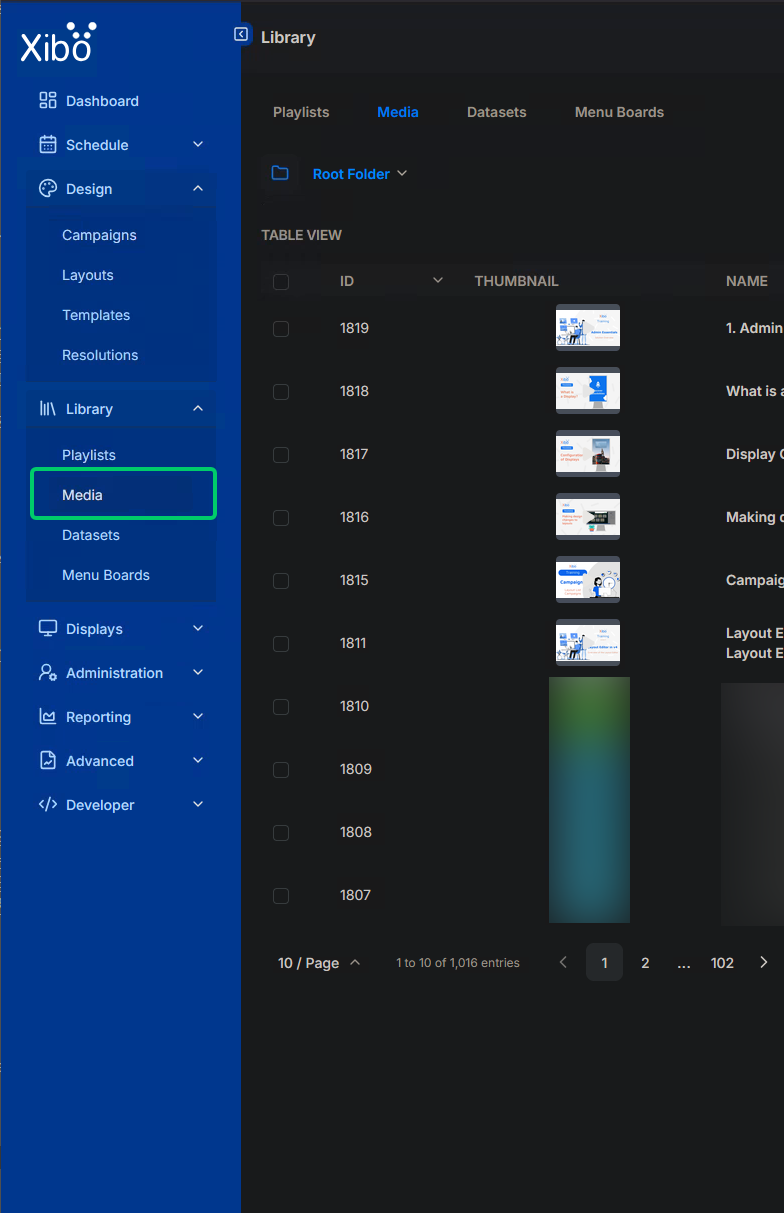

We have plenty of media available and it shows in the Library > Media section without issue.

Is there a fix or a workaround?

Thank in advance for any assistance!

Jason

image784×1213 39 KB

image784×1213 114 KB

2

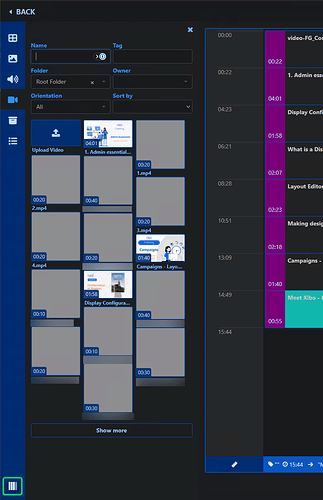

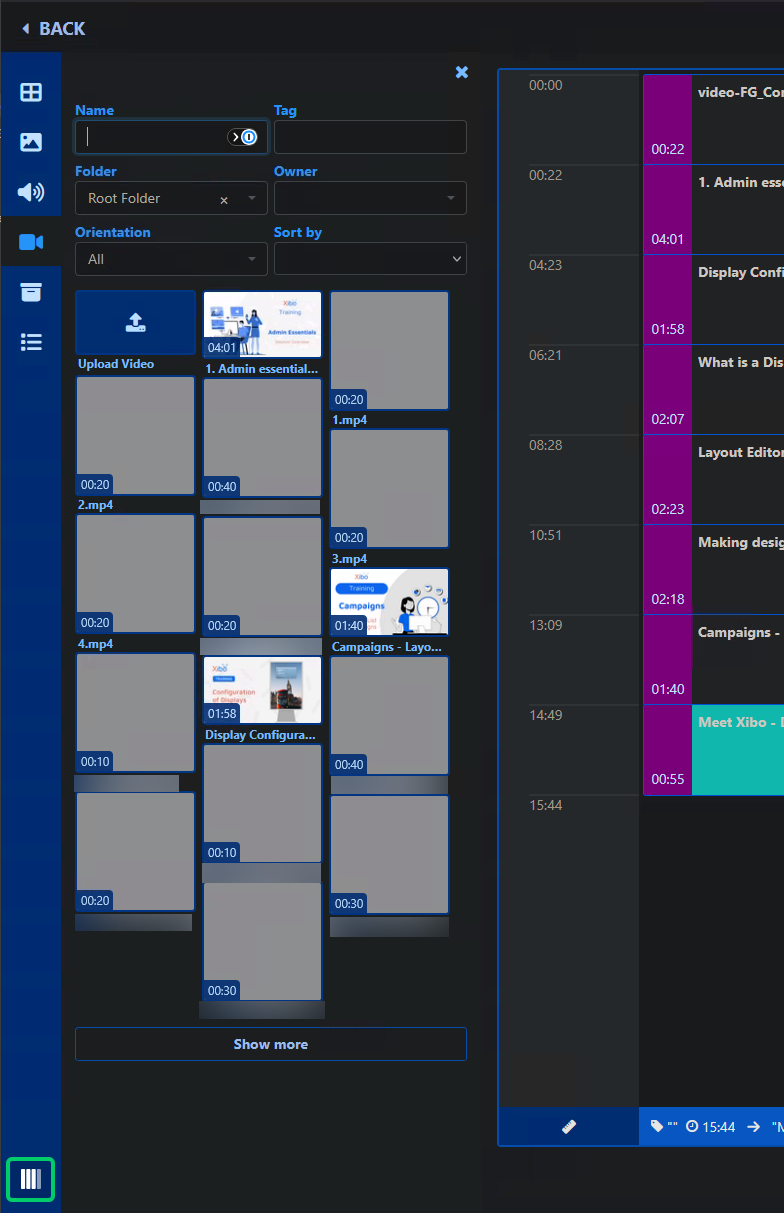

An update: I did some further testing. It looks like there’s a bug when the layout editor has the sidebar width setting at it’s widest (4 “bars”). If we select any of the other sizes, 1 to 3 "bars’, then the media shows up and the search by Name (or other fields) works again…

image784×1213 92.2 KB

So this is the workaround, but this must be a UI bug?

3

Hi there,

Thanks for reporting this. I will pass this back to the team to investigate whether it is a UI bug, and come back to you when we have an update.

Thanks for your support!

EDIT: I have replicated this on my side too - we will fix it.
