How to add a new Soap service

Cix · September 2, 2016, 10:54am

Hi,
in order to add a new Soap service “NotifyRegionStatus”, taking as example the “NotifyStatus” service i modified these files:

service_v5.wsdl and service_v4.wsdl:

    <message name="NotifyRegionStatusRequest">
        <part name="serverKey" type="xsd:string" />
        <part name="hardwareKey" type="xsd:string" />
        <part name="status" type="xsd:string" />
    </message>
    <message name="NotifyRegionStatusResponse">
        <part name="success" type="xsd:boolean" />
    </message>

    ( ... )

    <operation name="NotifyRegionStatus">
            <documentation>Report back the current status</documentation>
            <input message="tns:NotifyRegionStatusRequest"/>
            <output message="tns:NotifyRegionStatusResponse"/>
    </operation>

   ( ... )

   <operation name="NotifyRegionStatus">
            <soap:operation soapAction="urn:xmds#NotifyRegionStatus" style="rpc"/>
            <input>
                <soap:body use="encoded" namespace="urn:xmds" encodingStyle="http://schemas.xmlsoap.org/soap/encoding/"/>
            </input>
            <output>
                <soap:body use="encoded" namespace="urn:xmds" encodingStyle="http://schemas.xmlsoap.org/soap/encoding/"/>
            </output>
   </operation>

XmdsWrapper.php

function NotifyRegionStatus()
    {

    }

and in the Soap4.php file i added the function:

public function NotifyRegionStatus($serverKey, $hardwareKey, $status)
    {
        ( ... )

        return true;
    }

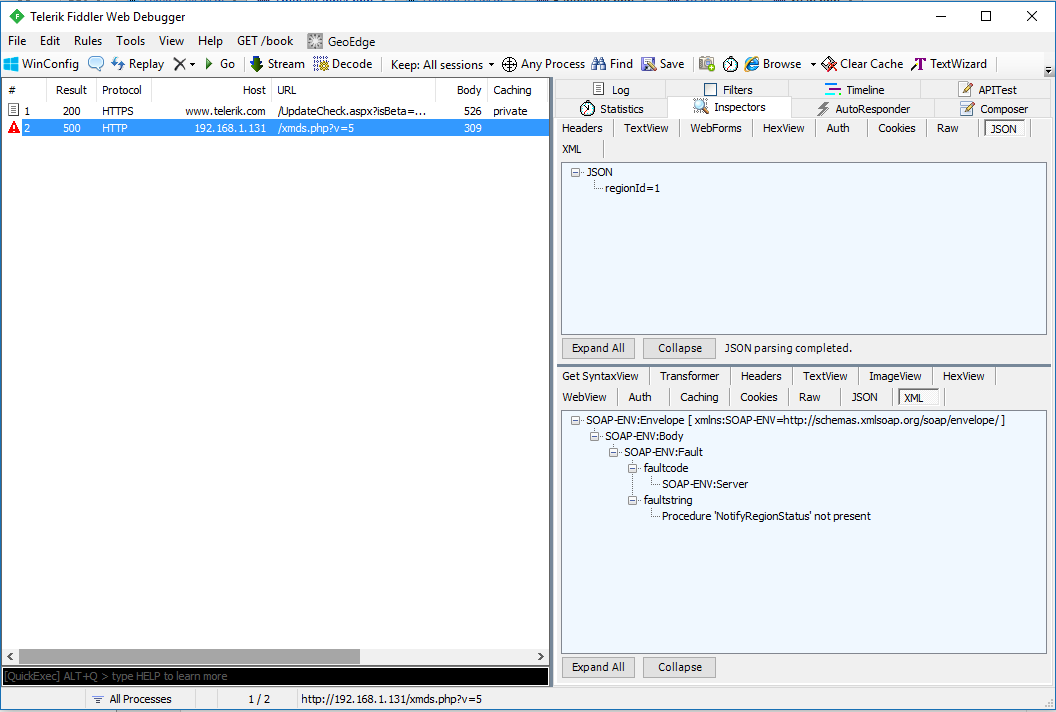

After this in the wsdl document ( http://192.168.1.131/xmds.php?v=5&WSDL ) the new service appears:

This XML file does not appear to have any style information associated with it. The document tree is shown below.
<definitions xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:tns="urn:xmds" xmlns:soap="http://schemas.xmlsoap.org/wsdl/soap/" xmlns="http://schemas.xmlsoap.org/wsdl/" targetNamespace="urn:xmds">
<types>
<xsd:schema targetNamespace="urn:xmds">
<xsd:import namespace="http://schemas.xmlsoap.org/soap/encoding/"/>
<xsd:import namespace="http://schemas.xmlsoap.org/wsdl/"/>
</xsd:schema>
</types>
<message name="RegisterDisplayRequest">
<part name="serverKey" type="xsd:string"/>
<part name="hardwareKey" type="xsd:string"/>
<part name="displayName" type="xsd:string"/>
<part name="clientType" type="xsd:string"/>
<part name="clientVersion" type="xsd:string"/>
<part name="clientCode" type="xsd:int"/>
<part name="operatingSystem" type="xsd:string"/>
<part name="macAddress" type="xsd:string"/>
<part name="xmrChannel" type="xsd:string"/>
<part name="xmrPubKey" type="xsd:string"/>
</message>
<message name="RegisterDisplayResponse">
<part name="ActivationMessage" type="xsd:string"/>
</message>
<message name="RequiredFilesRequest">
<part name="serverKey" type="xsd:string"/>
<part name="hardwareKey" type="xsd:string"/>
</message>
<message name="RequiredFilesResponse">
<part name="RequiredFilesXml" type="xsd:string"/>
</message>
<message name="GetFileRequest">
<part name="serverKey" type="xsd:string"/>
<part name="hardwareKey" type="xsd:string"/>
<part name="fileId" type="xsd:int"/>
<part name="fileType" type="xsd:string"/>
<part name="chunkOffset" type="xsd:double"/>
<part name="chuckSize" type="xsd:double"/>
</message>
<message name="GetFileResponse">
<part name="file" type="xsd:base64Binary"/>
</message>
<message name="ScheduleRequest">
<part name="serverKey" type="xsd:string"/>
<part name="hardwareKey" type="xsd:string"/>
</message>
<message name="ScheduleResponse">
<part name="ScheduleXml" type="xsd:string"/>
</message>
<message name="BlackListRequest">
<part name="serverKey" type="xsd:string"/>
<part name="hardwareKey" type="xsd:string"/>
<part name="mediaId" type="xsd:int"/>
<part name="type" type="xsd:string"/>
<part name="reason" type="xsd:string"/>
</message>
<message name="BlackListResponse">
<part name="success" type="xsd:boolean"/>
</message>
<message name="SubmitLogRequest">
<part name="serverKey" type="xsd:string"/>
<part name="hardwareKey" type="xsd:string"/>
<part name="logXml" type="xsd:string"/>
</message>
<message name="SubmitLogResponse">
<part name="success" type="xsd:boolean"/>
</message>
<message name="SubmitStatsRequest">
<part name="serverKey" type="xsd:string"/>
<part name="hardwareKey" type="xsd:string"/>
<part name="statXml" type="xsd:string"/>
</message>
<message name="SubmitStatsResponse">
<part name="success" type="xsd:boolean"/>
</message>
<message name="MediaInventoryRequest">
<part name="serverKey" type="xsd:string"/>
<part name="hardwareKey" type="xsd:string"/>
<part name="mediaInventory" type="xsd:string"/>
</message>
<message name="MediaInventoryResponse">
<part name="success" type="xsd:boolean"/>
</message>
<message name="GetResourceRequest">
<part name="serverKey" type="xsd:string"/>
<part name="hardwareKey" type="xsd:string"/>
<part name="layoutId" type="xsd:int"/>
<part name="regionId" type="xsd:string"/>
<part name="mediaId" type="xsd:string"/>
</message>
<message name="GetResourceResponse">
<part name="resource" type="xsd:string"/>
</message>
<message name="NotifyStatusRequest">
<part name="serverKey" type="xsd:string"/>
<part name="hardwareKey" type="xsd:string"/>
<part name="status" type="xsd:string"/>
</message>
<message name="NotifyStatusResponse">
<part name="success" type="xsd:boolean"/>
</message>
<message name="NotifyRegionStatusRequest">
<part name="serverKey" type="xsd:string"/>
<part name="hardwareKey" type="xsd:string"/>
<part name="status" type="xsd:string"/>
</message>
<message name="NotifyRegionStatusResponse">
<part name="success" type="xsd:boolean"/>
</message>
<message name="SubmitScreenShotRequest">
<part name="serverKey" type="xsd:string"/>
<part name="hardwareKey" type="xsd:string"/>
<part name="screenShot" type="xsd:base64Binary"/>
</message>
<message name="SubmitScreenShotResponse">
<part name="success" type="xsd:boolean"/>
</message>
<portType name="xmdsPortType">
<operation name="RegisterDisplay">
<documentation>Register the Display with the CMS</documentation>
<input message="tns:RegisterDisplayRequest"/>
<output message="tns:RegisterDisplayResponse"/>
</operation>
<operation name="RequiredFiles">
<documentation>The files required by the requesting display</documentation>
<input message="tns:RequiredFilesRequest"/>
<output message="tns:RequiredFilesResponse"/>
</operation>
<operation name="GetFile">
<documentation>Gets the file requested</documentation>
<input message="tns:GetFileRequest"/>
<output message="tns:GetFileResponse"/>
</operation>
<operation name="Schedule">
<documentation>Gets the schedule</documentation>
<input message="tns:ScheduleRequest"/>
<output message="tns:ScheduleResponse"/>
</operation>
<operation name="BlackList">
<documentation>Set media to be blacklisted</documentation>
<input message="tns:BlackListRequest"/>
<output message="tns:BlackListResponse"/>
</operation>
<operation name="SubmitLog">
<documentation>Submit Logging from the Client</documentation>
<input message="tns:SubmitLogRequest"/>
<output message="tns:SubmitLogResponse"/>
</operation>
<operation name="SubmitStats">
<documentation>Submit Display statistics from the Client</documentation>
<input message="tns:SubmitStatsRequest"/>
<output message="tns:SubmitStatsResponse"/>
</operation>
<operation name="MediaInventory">
<documentation>Report back the clients MediaInventory</documentation>
<input message="tns:MediaInventoryRequest"/>
<output message="tns:MediaInventoryResponse"/>
</operation>
<operation name="GetResource">
<documentation>Gets the file requested</documentation>
<input message="tns:GetResourceRequest"/>
<output message="tns:GetResourceResponse"/>
</operation>
<operation name="NotifyStatus">
<documentation>Report back the current status</documentation>
<input message="tns:NotifyStatusRequest"/>
<output message="tns:NotifyStatusResponse"/>
</operation>
<operation name="NotifyRegionStatus">
<documentation>Report back the current status</documentation>
<input message="tns:NotifyRegionStatusRequest"/>
<output message="tns:NotifyRegionStatusResponse"/>
</operation>
<operation name="SubmitScreenShot">
<documentation>Submit a screen shot for a display</documentation>
<input message="tns:SubmitScreenShotRequest"/>
<output message="tns:SubmitScreenShotResponse"/>
</operation>
</portType>
<binding name="xmdsBinding" type="tns:xmdsPortType">
<soap:binding style="rpc" transport="http://schemas.xmlsoap.org/soap/http"/>
<operation name="RegisterDisplay">
<soap:operation soapAction="urn:xmds#RegisterDisplay" style="rpc"/>
<input>
<soap:body use="encoded" namespace="urn:xmds" encodingStyle="http://schemas.xmlsoap.org/soap/encoding/"/>
</input>
<output>
<soap:body use="encoded" namespace="urn:xmds" encodingStyle="http://schemas.xmlsoap.org/soap/encoding/"/>
</output>
</operation>
<operation name="RequiredFiles">
<soap:operation soapAction="urn:xmds#RequiredFiles" style="rpc"/>
<input>
<soap:body use="encoded" namespace="urn:xmds" encodingStyle="http://schemas.xmlsoap.org/soap/encoding/"/>
</input>
<output>
<soap:body use="encoded" namespace="urn:xmds" encodingStyle="http://schemas.xmlsoap.org/soap/encoding/"/>
</output>
</operation>
<operation name="GetFile">
<soap:operation soapAction="urn:xmds#GetFile" style="rpc"/>
<input>
<soap:body use="encoded" namespace="urn:xmds" encodingStyle="http://schemas.xmlsoap.org/soap/encoding/"/>
</input>
<output>
<soap:body use="encoded" namespace="urn:xmds" encodingStyle="http://schemas.xmlsoap.org/soap/encoding/"/>
</output>
</operation>
<operation name="Schedule">
<soap:operation soapAction="urn:xmds#Schedule" style="rpc"/>
<input>
<soap:body use="encoded" namespace="urn:xmds" encodingStyle="http://schemas.xmlsoap.org/soap/encoding/"/>
</input>
<output>
<soap:body use="encoded" namespace="urn:xmds" encodingStyle="http://schemas.xmlsoap.org/soap/encoding/"/>
</output>
</operation>
<operation name="BlackList">
<soap:operation soapAction="urn:xmds#BlackList" style="rpc"/>
<input>
<soap:body use="encoded" namespace="urn:xmds" encodingStyle="http://schemas.xmlsoap.org/soap/encoding/"/>
</input>
<output>
<soap:body use="encoded" namespace="urn:xmds" encodingStyle="http://schemas.xmlsoap.org/soap/encoding/"/>
</output>
</operation>
<operation name="SubmitLog">
<soap:operation soapAction="urn:xmds#SubmitLog" style="rpc"/>
<input>
<soap:body use="encoded" namespace="urn:xmds" encodingStyle="http://schemas.xmlsoap.org/soap/encoding/"/>
</input>
<output>
<soap:body use="encoded" namespace="urn:xmds" encodingStyle="http://schemas.xmlsoap.org/soap/encoding/"/>
</output>
</operation>
<operation name="SubmitStats">
<soap:operation soapAction="urn:xmds#SubmitLog" style="rpc"/>
<input>
<soap:body use="encoded" namespace="urn:xmds" encodingStyle="http://schemas.xmlsoap.org/soap/encoding/"/>
</input>
<output>
<soap:body use="encoded" namespace="urn:xmds" encodingStyle="http://schemas.xmlsoap.org/soap/encoding/"/>
</output>
</operation>
<operation name="MediaInventory">
<soap:operation soapAction="urn:xmds#MediaInventory" style="rpc"/>
<input>
<soap:body use="encoded" namespace="urn:xmds" encodingStyle="http://schemas.xmlsoap.org/soap/encoding/"/>
</input>
<output>
<soap:body use="encoded" namespace="urn:xmds" encodingStyle="http://schemas.xmlsoap.org/soap/encoding/"/>
</output>
</operation>
<operation name="GetResource">
<soap:operation soapAction="urn:xmds#GetResource" style="rpc"/>
<input>
<soap:body use="encoded" namespace="urn:xmds" encodingStyle="http://schemas.xmlsoap.org/soap/encoding/"/>
</input>
<output>
<soap:body use="encoded" namespace="urn:xmds" encodingStyle="http://schemas.xmlsoap.org/soap/encoding/"/>
</output>
</operation>
<operation name="NotifyStatus">
<soap:operation soapAction="urn:xmds#NotifyStatus" style="rpc"/>
<input>
<soap:body use="encoded" namespace="urn:xmds" encodingStyle="http://schemas.xmlsoap.org/soap/encoding/"/>
</input>
<output>
<soap:body use="encoded" namespace="urn:xmds" encodingStyle="http://schemas.xmlsoap.org/soap/encoding/"/>
</output>
</operation>
<operation name="NotifyRegionStatus">
<soap:operation soapAction="urn:xmds#NotifyRegionStatus" style="rpc"/>
<input>
<soap:body use="encoded" namespace="urn:xmds" encodingStyle="http://schemas.xmlsoap.org/soap/encoding/"/>
</input>
<output>
<soap:body use="encoded" namespace="urn:xmds" encodingStyle="http://schemas.xmlsoap.org/soap/encoding/"/>
</output>
</operation>
<operation name="SubmitScreenShot">
<soap:operation soapAction="urn:xmds#SubmitScreenShot" style="rpc"/>
<input>
<soap:body use="encoded" namespace="urn:xmds" encodingStyle="http://schemas.xmlsoap.org/soap/encoding/"/>
</input>
<output>
<soap:body use="encoded" namespace="urn:xmds" encodingStyle="http://schemas.xmlsoap.org/soap/encoding/"/>
</output>
</operation>
</binding>
<service name="xmds">
<port name="xmdsPort" binding="tns:xmdsBinding">
<soap:address location="http://192.168.1.131/xmds.php?v=5"/>
</port>
</service>
</definitions>

But when i call it, it shows a 500 internal server error:

Where I went wrong?

Thanks

dan · September 5, 2016, 12:14pm

Its probably a cached WSDL - try restarting your php/apache process.

Cix · September 5, 2016, 1:00pm

Tried, but this does not solve it.

what else could be?

dan · September 5, 2016, 10:14pm

Perhaps take a look at this - http://stackoverflow.com/questions/303488/in-php-how-can-you-clear-a-wsdl-cache

Id be surprised it is isn’t the WSDL cache - as your WSDL looks good
