Hi everyone! I hope you’re all doing well.
I saw that some users reported an issue with the Xibo CMS 4.4.x preview, like in this post.:
I upgraded my CMS and noticed the same symptom.
I use IIS / custom installation, and I want to share how I resolved the issue here. It might be useful for other types of custom installations as well.

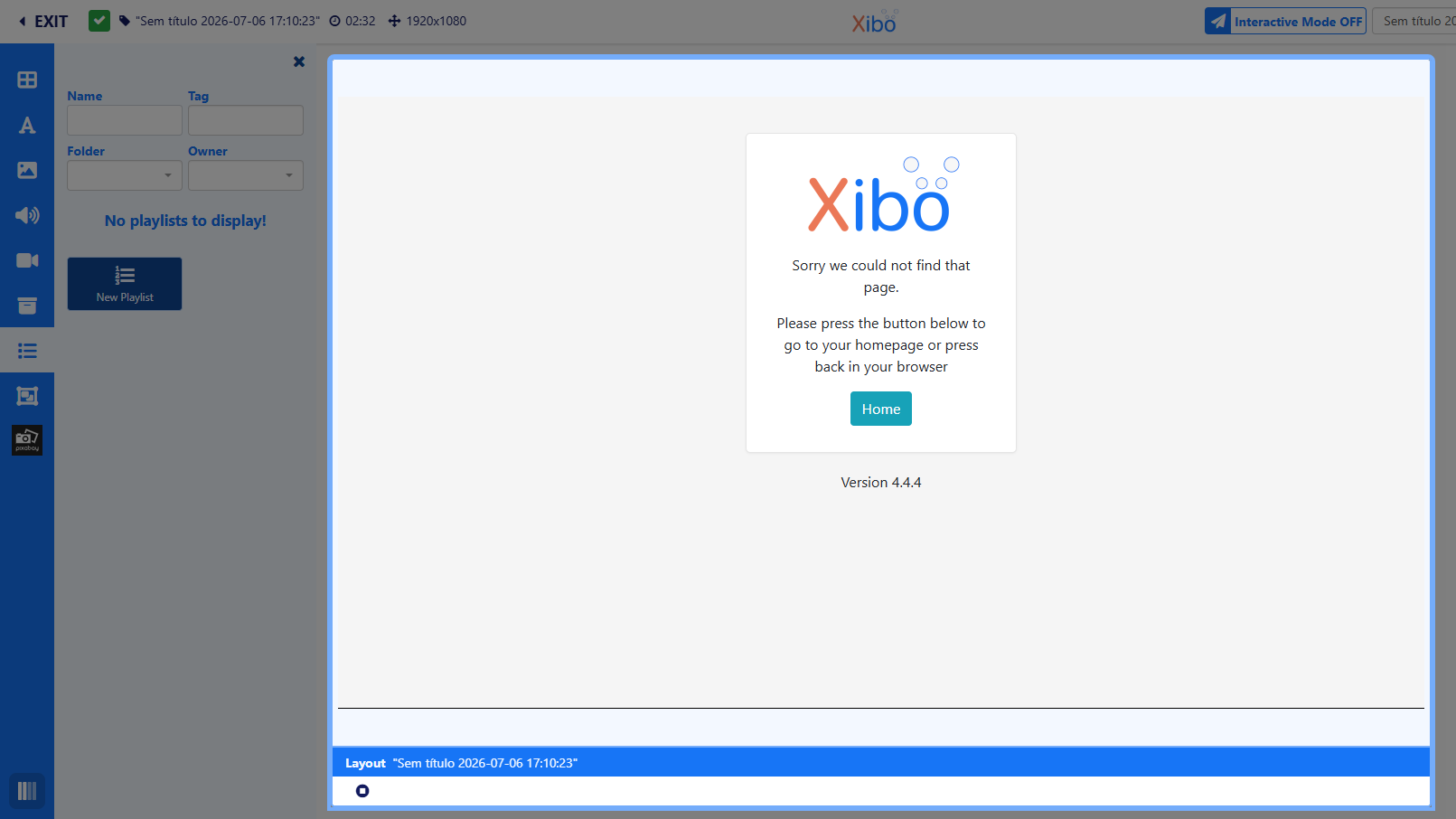

Symptom:
/preview/layout/preview/{layoutId}
Page not found
The layout editor opened normally, thumbnails were generated, but the layout/campaign preview stayed broken.
In my case, the root cause was the web server rewrite configuration.
Starting with Xibo 4.4.x, the preview has its own front controller:
/web/preview/index.php
So requests that start with:
/preview/
must be internally rewritten to:
preview/index.php
If the web server still rewrites everything to the main CMS entrypoint:
index.php
then the CMS receives the preview URL as a normal WEB route, and it returns “Page not found”.
Apache / custom web server rule
For Apache or custom installations, make sure the equivalent rewrite rule exists before the general catch-all rule:
RewriteCond %{REQUEST_FILENAME} !-f
RewriteCond %{REQUEST_URI} ^/preview/.*$
RewriteRule ^ preview/index.php [QSA,L]
The important part is that the rule should match only URLs starting with:
/preview/
Do not use a broad pattern like:
.*/preview/.*
because that can incorrectly catch routes such as:
/region/preview/{id}
and send them to the wrong front controller.
IIS example
For IIS, this rule fixed the issue for me.
It must be placed before the general rewrite rule to index.php:
<rule name="Xibo Preview" stopProcessing="true">
<match url="^" ignoreCase="false" />
<conditions logicalGrouping="MatchAll">
<add input="{REQUEST_FILENAME}" matchType="IsFile" ignoreCase="false" negate="true" />
<add input="{URL}" pattern="^/preview/.*$" ignoreCase="false" />
</conditions>
<action type="Rewrite" url="preview/index.php" appendQueryString="true" />
</rule>
I also had to allow the OPTIONS verb, because the preview entrypoint uses CORS/preflight handling:
<verbs allowUnlisted="false">
<add verb="GET" allowed="true" />
<add verb="POST" allowed="true" />
<add verb="HEAD" allowed="true" />
<add verb="PUT" allowed="true" />
<add verb="DELETE" allowed="true" />
<add verb="OPTIONS" allowed="true" />
</verbs>
After applying the rewrite rule and recycling the application pool, this URL started returning the preview bundle correctly:
https://your-cms-address/preview/layout/playerBundle
And layout/campaign preview started working again.
So, for custom installations upgraded from 4.3.x to 4.4.x, I would recommend checking whether the web server configuration was updated to include the new /preview/ rewrite rule.
Update 1: In order to make the Elements / HTML work on the preview, the header bellow must be removed:
Header set X-Frame-Options: “sameorigin”
Documentation suggestion
Hi @natasha ,
Could the “Xibo on a web server” documentation be updated for CMS 4.4.x custom IIS/Apache installations?
We found that layout/campaign preview can return “Page not found” after upgrading from 4.3.x to 4.4.x if the web server rewrite rules are not updated.
The documentation should probably mention that /preview/* requests must be rewritten to:
/web/preview/index.php
before the general catch-all rule to:
index.php
For IIS, the required rule is:
<rule name="Xibo Preview" stopProcessing="true">
<match url="^" ignoreCase="false" />
<conditions logicalGrouping="MatchAll">
<add input="{REQUEST_FILENAME}" matchType="IsFile" ignoreCase="false" negate="true" />
<add input="{URL}" pattern="^/preview/.*$" ignoreCase="false" />
</conditions>
<action type="Rewrite" url="preview/index.php" appendQueryString="true" />
</rule>
Also, the OPTIONS verb should be allowed because the preview entrypoint handles CORS/preflight requests.
Thanks!
